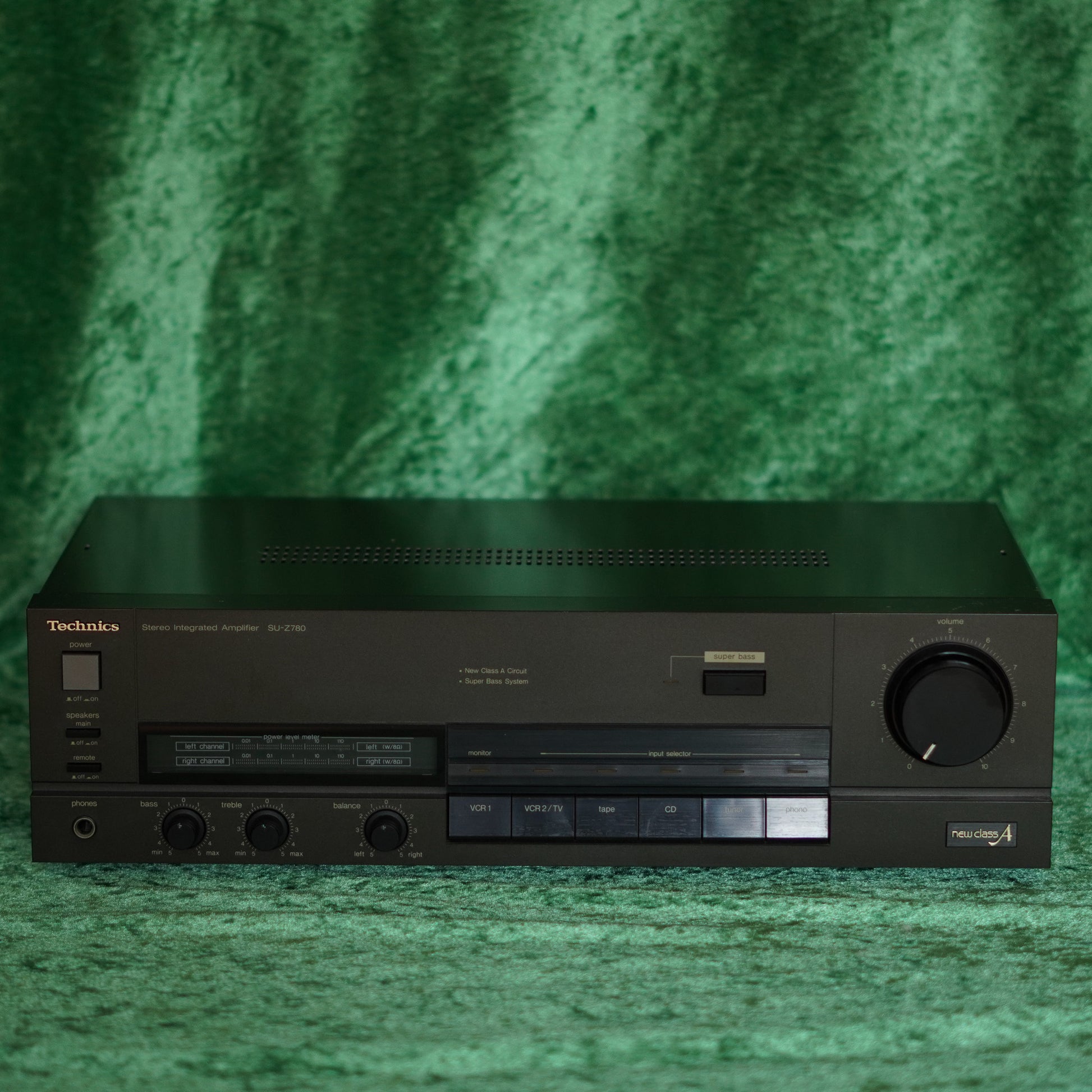

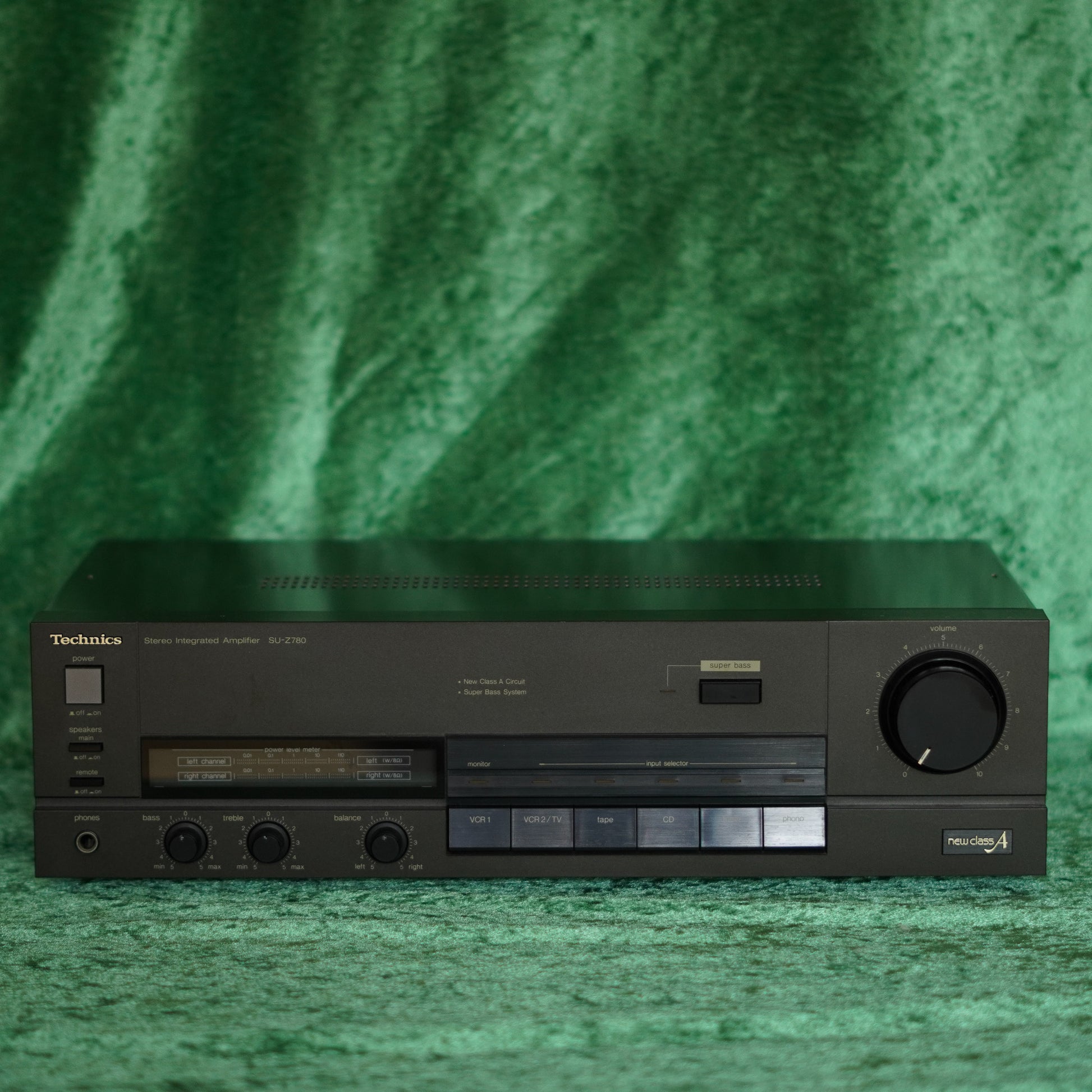

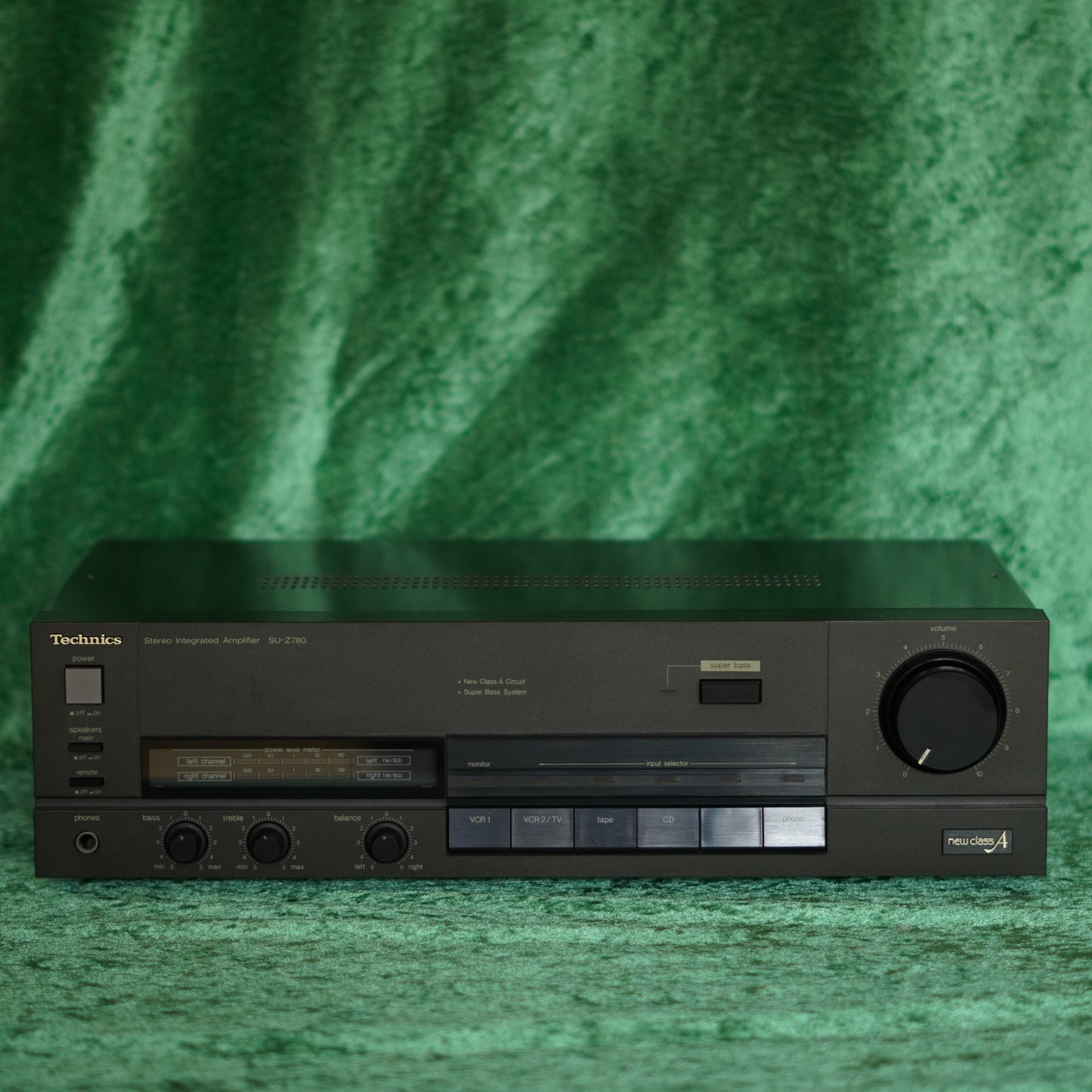

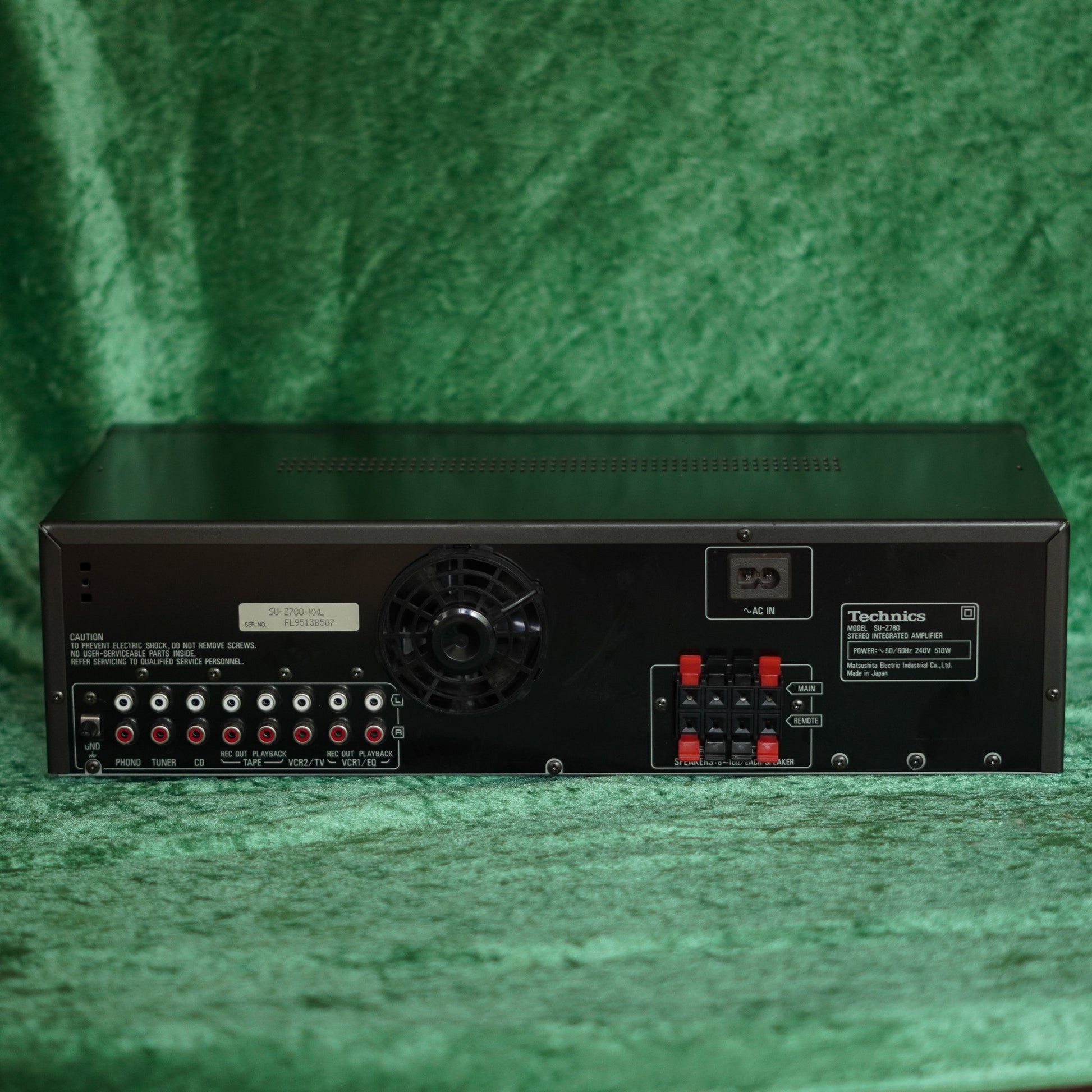

Technics SU-Z780 Stereo Integrated Amplifier
Technics SU-Z780 Stereo Integrated Amplifier
Couldn't load pickup availability
A fine example of this amp. Working perfectly and in excellent condition.
This mid 80s offering from Technics doesn’t pull its punches… It readily delivers 80 watts rms per channel into 8Ω loads, or 100W rms into 4Ω (with the ability to cover higher peaks), giving your music miles of headroom. It uses Technics “New Class A” topology (basically AB with higher bias), and has an excellent quality to its sound. It’s packed with features too:

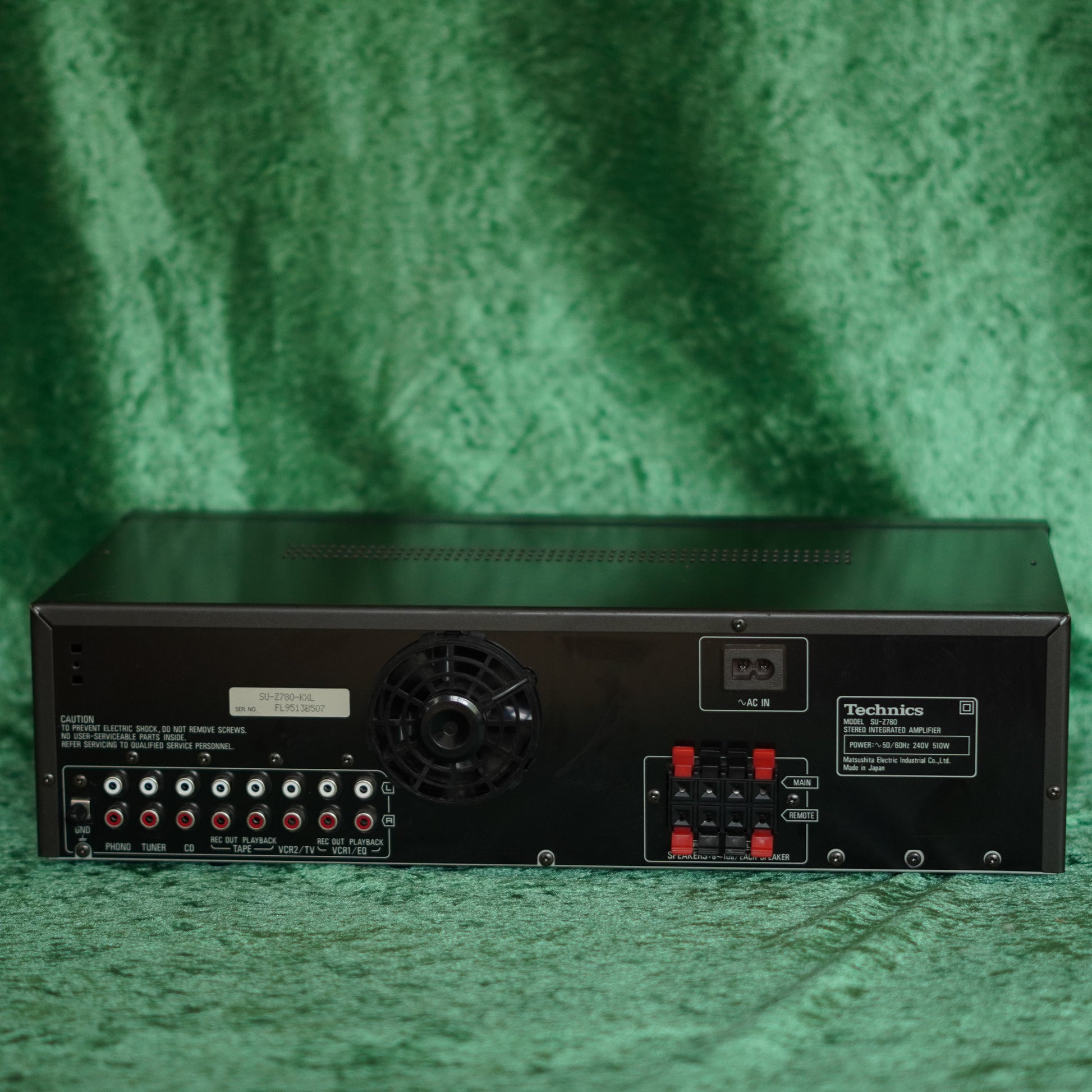

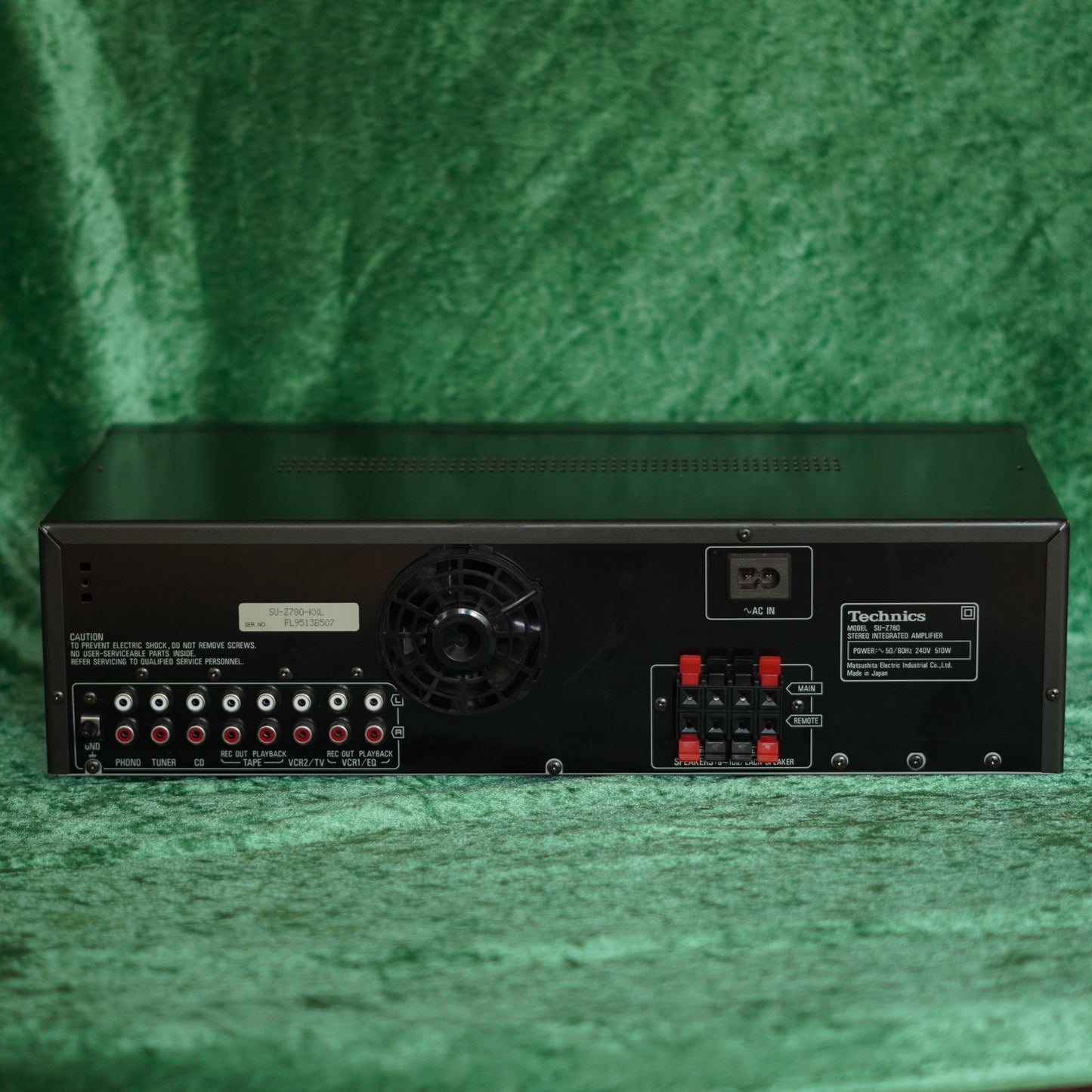

· Phono (Turntable) input

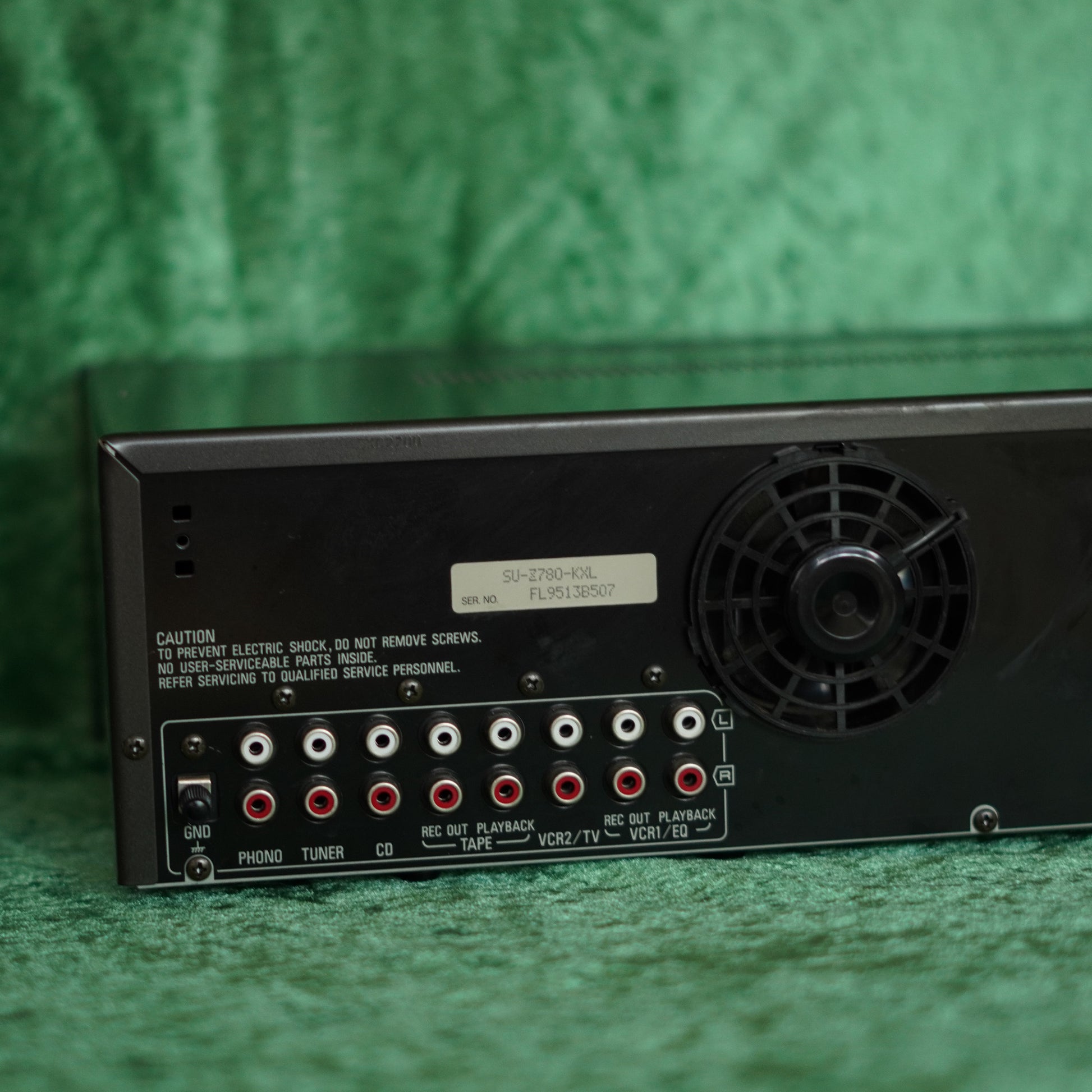

· Five line level (aux) inputs suitable for any modern device

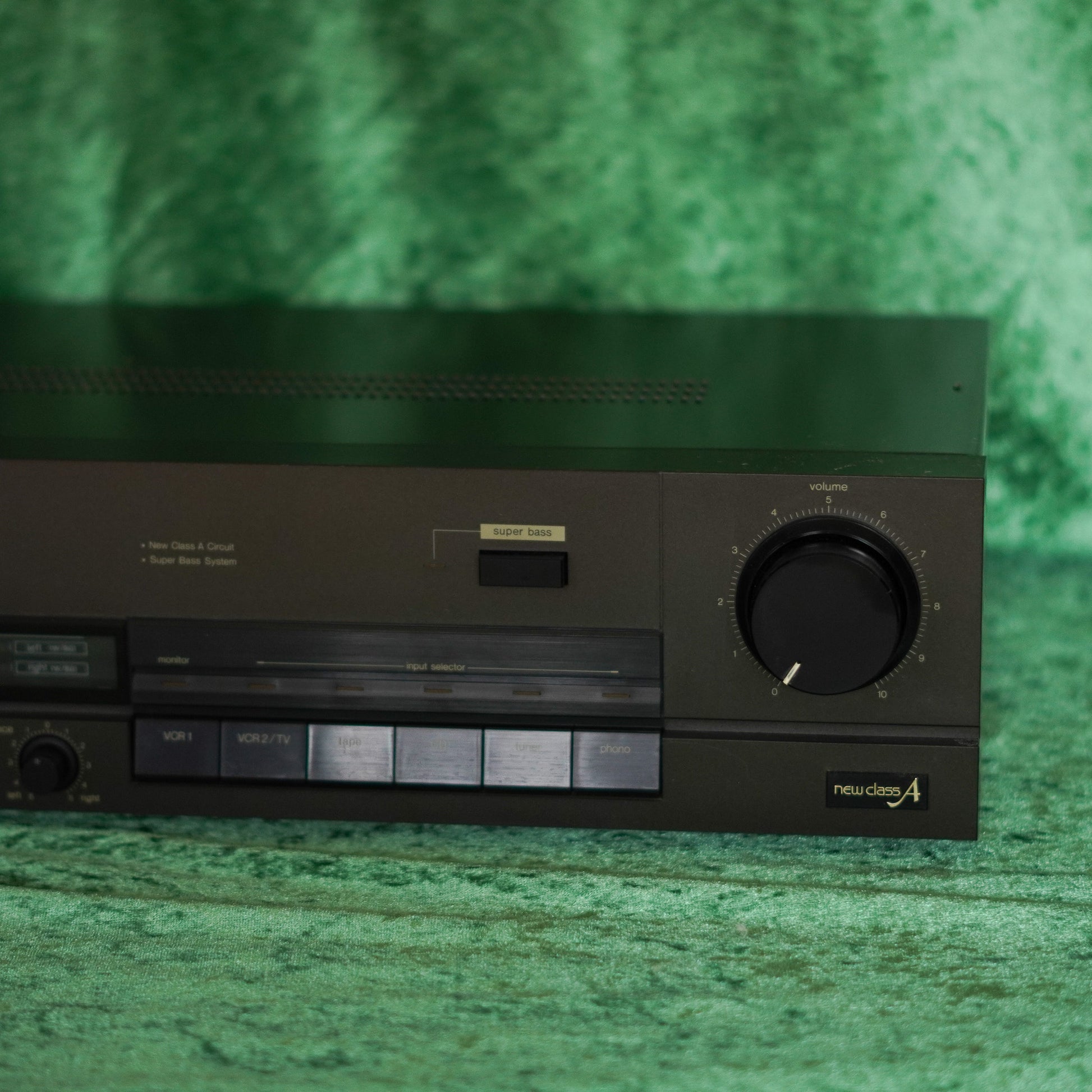

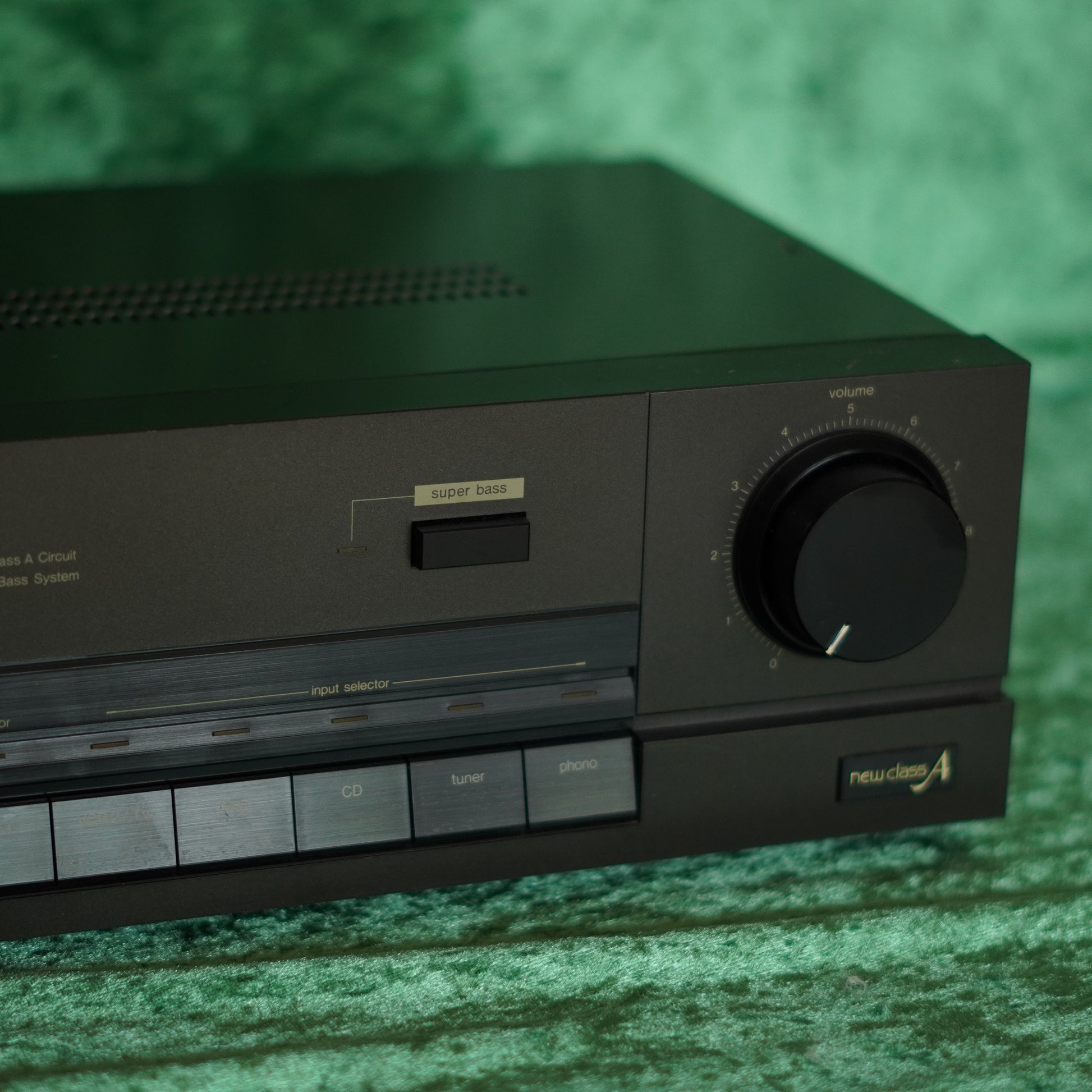

· “Super Bass” loudness contouring

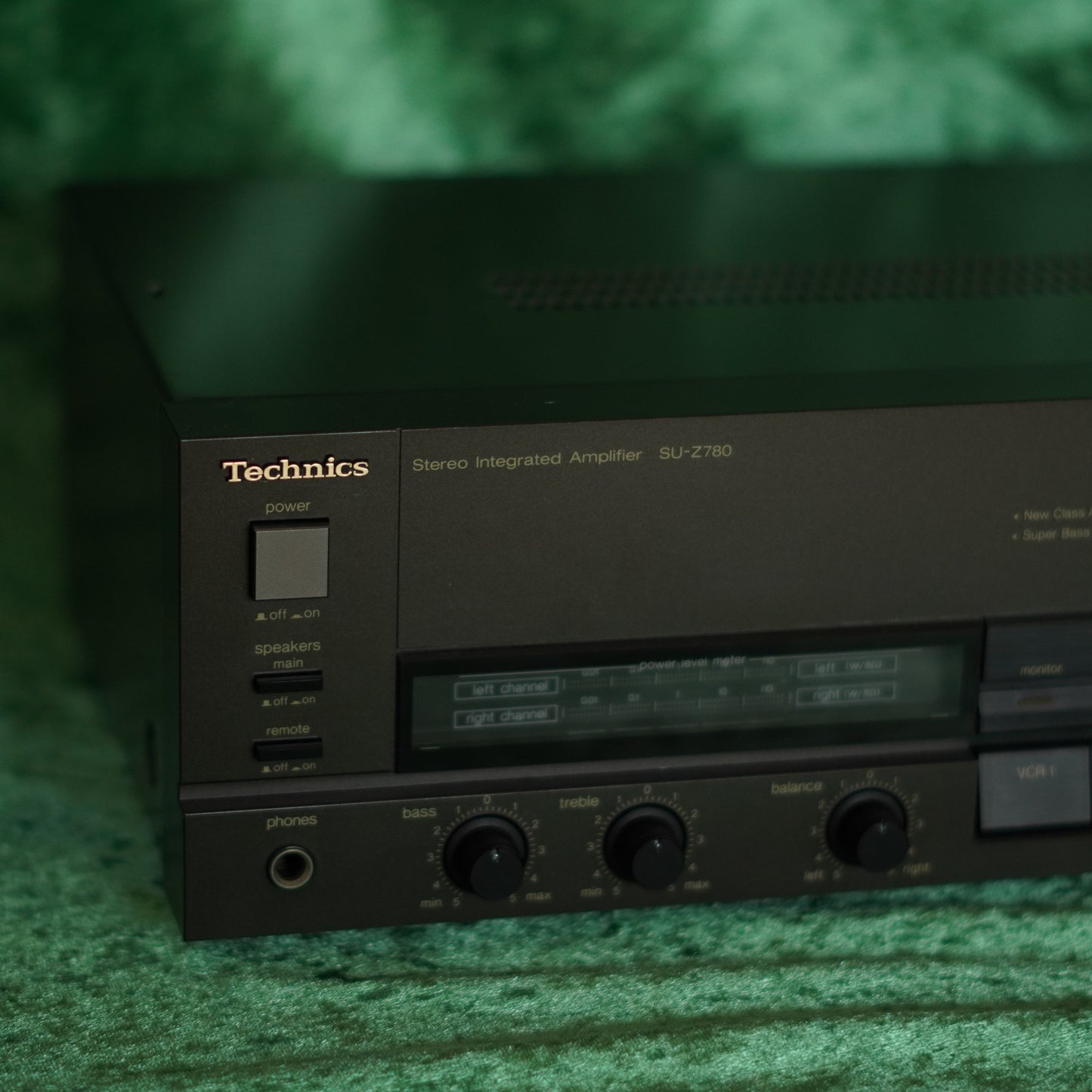

· Bass/treble/balance adjustment
· Electronic input selection
· LED Power output / peak meters calibrated to 110W per channel 8Ω

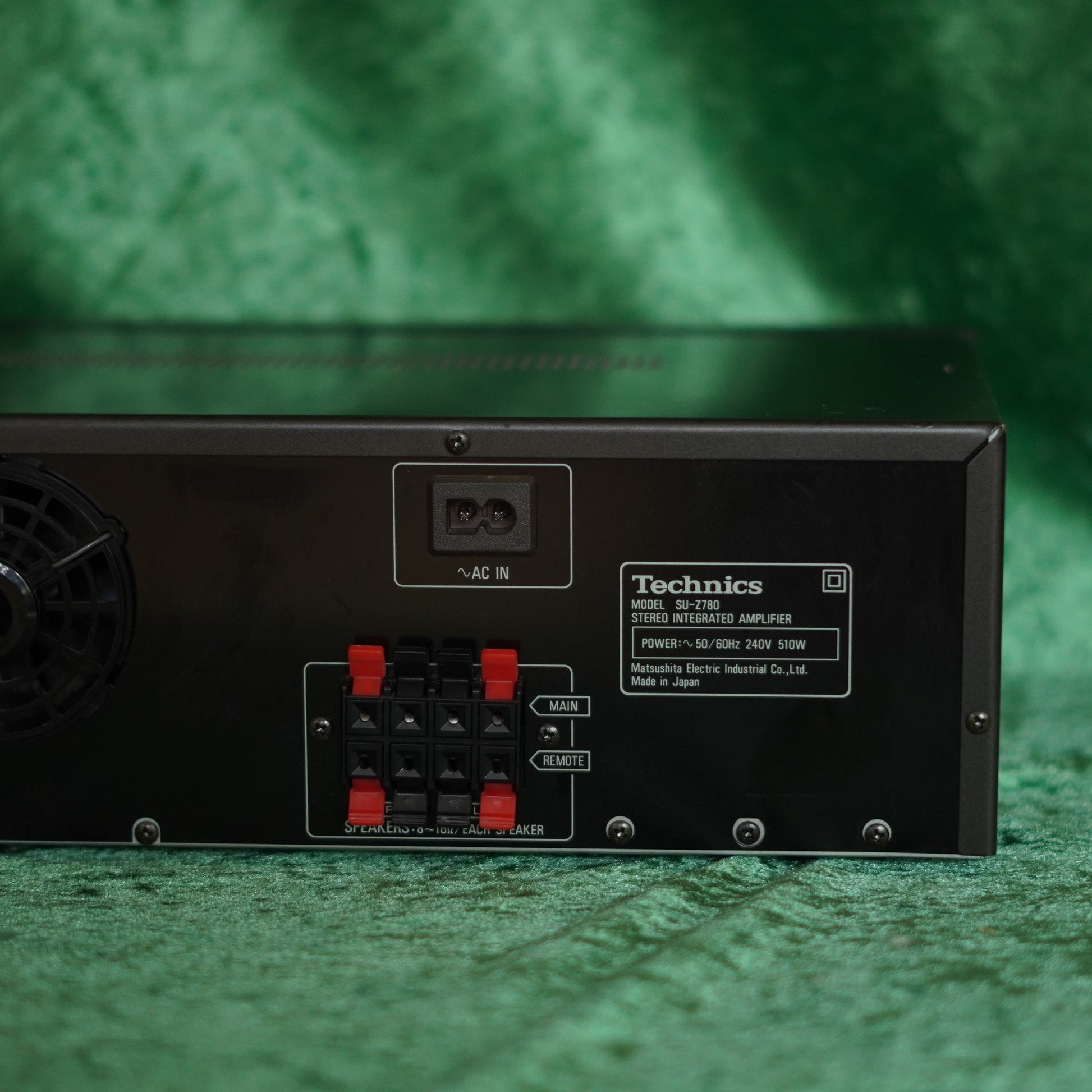

· Two switchable speaker zones
· Intelligent fan cooling
Frequency response: 5Hz to 60kHz
Total harmonic distortion: 0.005%
Damping factor: 60
Input sensitivity: 0.17mV (MC), 2.5mV (MM), 150mV (line)
Signal to noise ratio: 68dB (MC), 86dB (MM), 100dB (line)
Channel separation: 50dB (line)
Output: 150mV (line)
Speaker load impedance: 4Ω (minimum)
Dimensions: 430 x 125 x 280mm
Weight: 10.5kg
If you’re looking for an old school HiFi amplifier that offers a bit of grunt as well you could do a whole lot worse than this!
